Smart wifi module for home automation - Shelly Uni

Intelligent Wi-Fi operated implant.

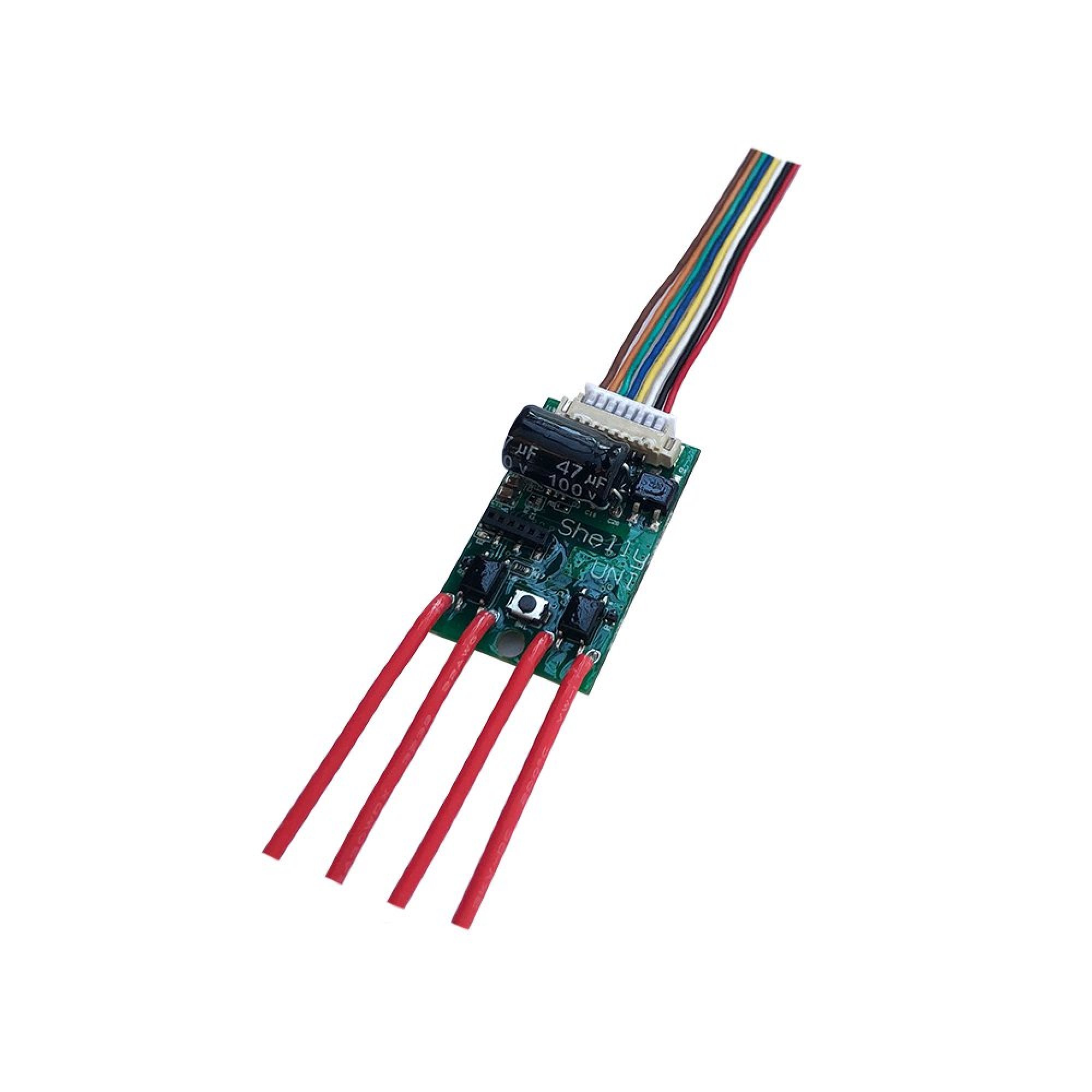

Shelly UNI is the smallest universal module that can make any old appliance smart in your smart home! With this tiny, insulated chip, you can control any sensor and measure it, such as a liquid level sensor to measure the level of, or even automate the auto-filling system. No more waiting around in the morning for your coffee machine to heat its water and prepare your coffee! Just connect it to Shelly UNI and switch it on remotely as you please, or on a set schedule.

It can work by itself.
Or it can work as another automation system’s component.
So it works with local home automation controller.

Standard warranty(included in purchase price):

12 month warranty due to device malfunctions.

Weight	0.023 kg
Dimensions	6.3 × 3.3 × 2.2 cm

Specifications

POWER
Power supply AC	12V – 24V
Power supply DC	12V – 36V
SPECIAL FUNCTIONS
Inputs	2 Separated digital inputs from 2.2-36V DC and 12-24V AC
Outputs	2 Potential free outputs up to 36VAC and 24VDC, max 100 mA each
Overload protection	No
Power measurement	1 ADC – dual ranges from 0-12V and 12-30V
FEATURES
Channels	2 Channel
Operational temperature	0°C to + 40 °C
Device power consumption	< 1 W
Intelligent On/Off	Yes
Sunrise/Sunset	Yes
Weekly Schedule	Yes
UL Listed option	No
CONNECTIVITY
Wireless	Yes
Wi-Fi Protocol	802.11 b/g/n
Wi-Fi Radio frequency	2400 – 2484 MHz
Wi-Fi Radio signal power	1mW
Wi-Fi Range	up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
DIMENSIONS
Size	20mm x 33mm x 13mm
