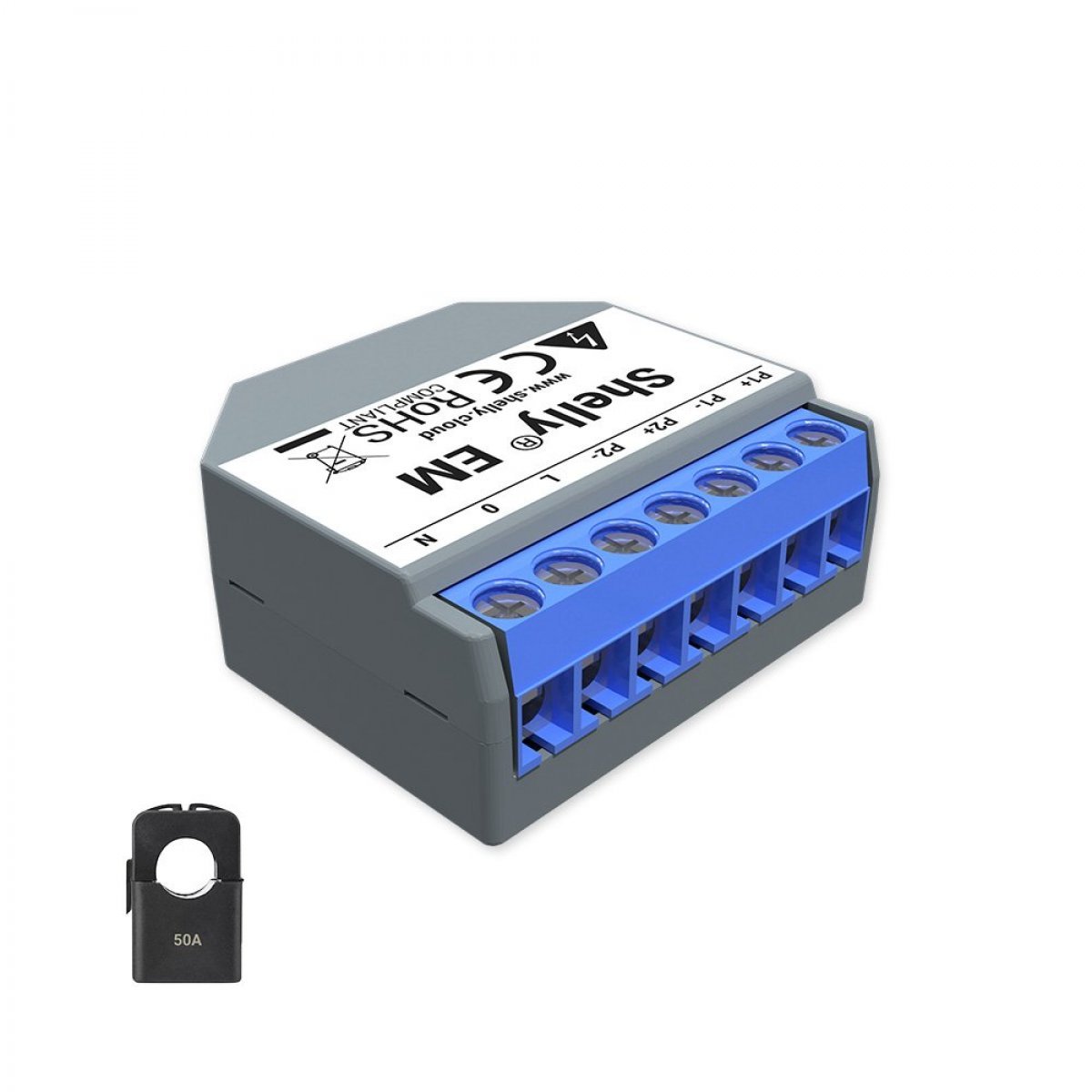

Shelly EM + 50A Clamp – Smart Energy Meter with WiFi Monitor Power Consumption Relay

230.00 د.إ inc. VAT

Category Tags ,

Wi-Fi operated Energy Meter and Contactor Control

  • Two independent measuring channels up to 120A each.
  • One contactor control (or load up to 2A).
  • 365 days of internal memory in case Wi-Fi is not available.
  • Voltage measurement and configurable alarm reporting.

Standard warranty(included in purchase price):

12 month warranty due to device malfunctions.

Weight 0.039 kg
Dimensions 13.8 × 8.8 × 5.1 cm

Specifications

POWER
Power supply AC 110-230V ±10%, 50/60Hz
Power supply DC No
SPECIAL FUNCTIONS
Contactor Control Yes – max 2A
Roller shutter mode No
Device temperature protection No
Overload protection No
Power measurement Yes
FEATURES
Channels 2 Channel
Operational temperature 0 to + 40 °C
Device power consumption < 1 W
Intelligent On/Off Yes
Local and remote control Yes
Sunrise/Sunset Yes
Weekly Schedule Yes
UL Listed option No
CONNECTIVITY
Wireless/WiFi Protocol 802.11 b/g/n
Radiofrequency 2400 – 2500 MHz
Radio signal power 1mW
Range up to 50 m outdoors and up to 30 m indoors (depending on the building materials)

Download

User and safety guide

Wiring Diagram
